When your process demands ultra dry air, choose ZEKS. Our regenerative desiccant dryers deliver -40°F to -100°F pressure dew points with platforms engineered for reliability, easy serviceability, and long term performance—all backed by comprehensive warranties and expert support. Choose from heatless, heated purge and heated blower purge desiccant regeneration to meet application requirements.
20-60 SCFM
Hydronix™ MPS Series Heatless Regeneration
For air systems with 5-15 horsepower compressors
For air systems with 5-15 horsepower compressors
90-5,000 SCFM

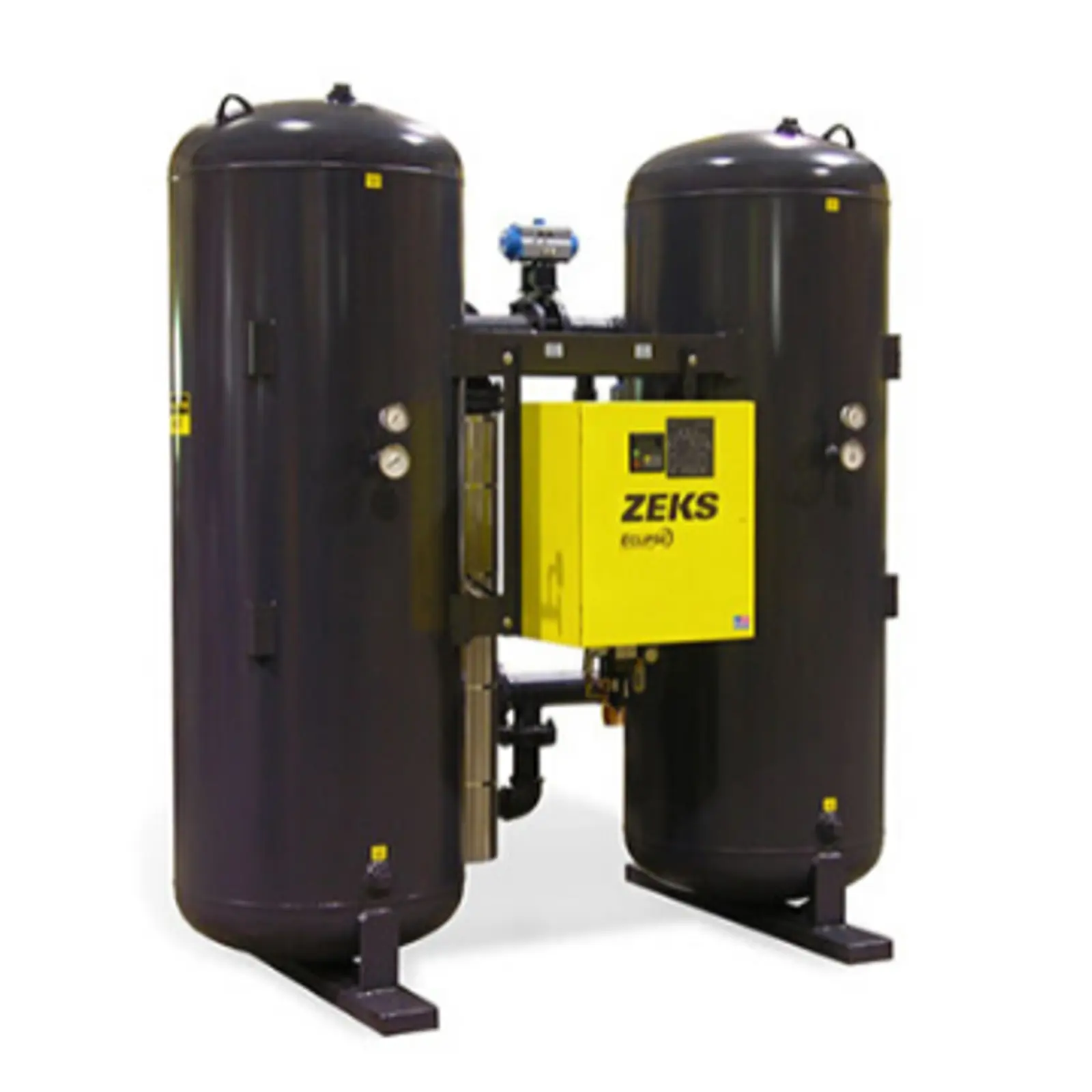

Eclipse™ ZPB Series Heatless Regeneration
For air systems with 20-1,000 horsepower compressors
For air systems with 20-1,000 horsepower compressors
.jpg?format=pjpeg&width=1600&quality=75&auto=webp)
3-177 SCFM
ZMA Modular Series Heatless Regeneration
For air systems with 1-35 horsepower compressors
For air systems with 1-35 horsepower compressors
Heated Dryer

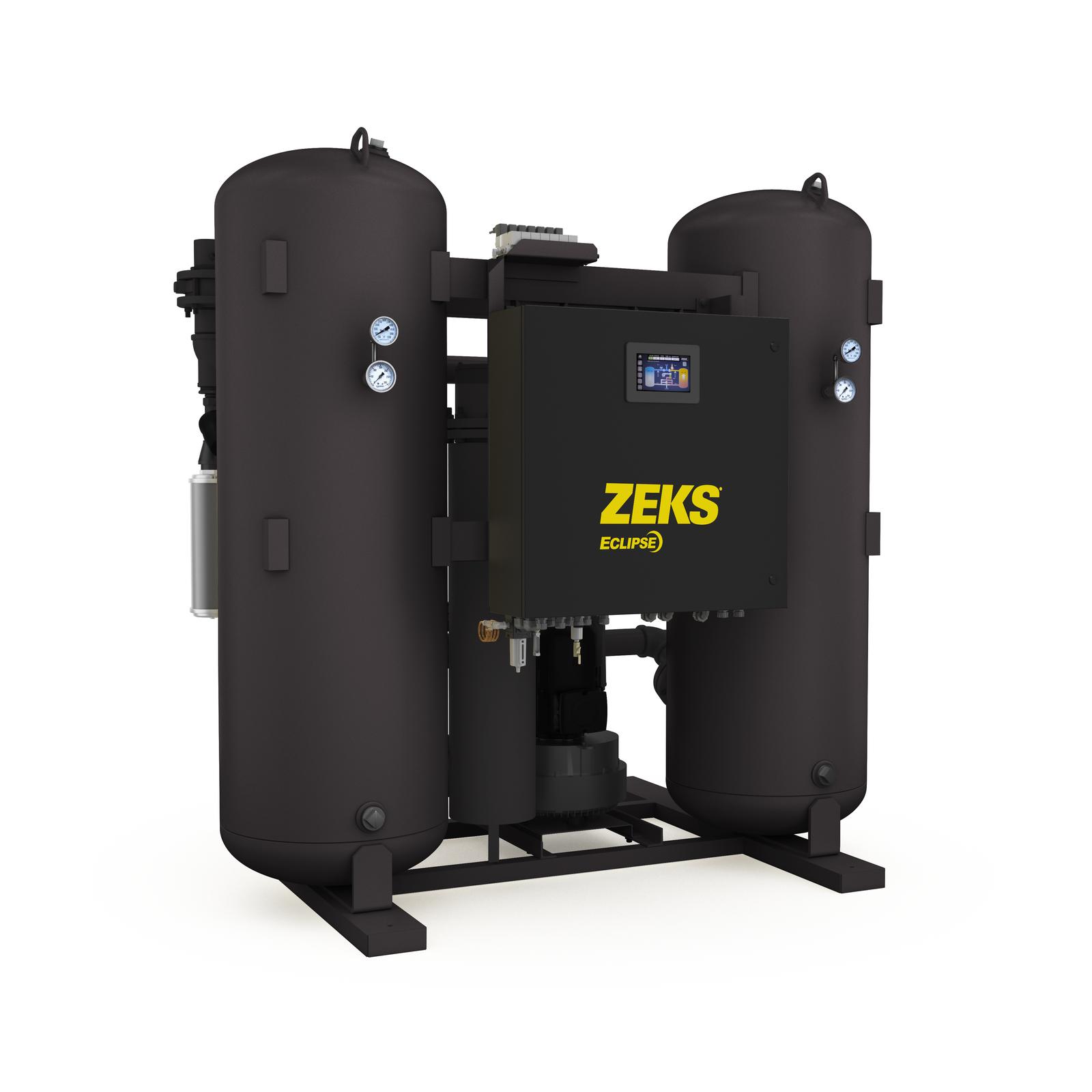

Heated Blower Purge
How Desiccant Dryers Work
Desiccant dryers remove moisture through adsorption—water vapor adheres to the surface of highly porous media such as activated alumina or molecular sieve.
- Compressed air flows through a desiccant filled tower
- Water vapor adsorbs to the desiccant surface
- Dry air exits at the specified dew point
- While one tower dries, the other regenerates, ensuring continuous performance
Desiccant Regeneration Designs (Pick the Best Fit)
Heatless Desiccant Dryers
- Uses a portion of dried compressed air for purge
- No heaters or blowers—mechanically simple, highly reliable
- Ideal when simplicity and uptime are top priorities
Externally Heated Desiccant Dryers
- Electric heaters cut purge consumption
- Longer cycles; balanced energy and performance
- Solid choice for steady demand profiles
Heated Blower Desiccant Dryers
- Uses an ambient air blower plus heat for regeneration
- Minimal purge—excellent total cost of ownership at higher flows
- Great for plants prioritizing operating cost
ZEKS difference: Service forward layouts and low profile designs simplify valve access, desiccant replacement, and routine preventative maintenance—so you get ultra dry air without maintenance headaches.
When to Choose a Desiccant Dryer
- Ambient temperatures at or below freezing
- Critical processes (instrument air, coatings, pharma)
- Moisture sensitive instrumentation and controls
- When consistent low dew points protect product quality
Protecting Your Investment
Upstream coalescing filtration and reliable condensate management protect desiccant life and valves. Plan for:
• Filter inspections/replacements every 6 months
• Annual desiccant sampling and performance trending
• Drain verification and valve checks during PM windows
ZEKS low-profile design make these tasks fast and repeatable, lowering lifecycle cost while maintaining dew point stability.
Why Choose ZEKS Desiccant Dryers
- Reliability: Built for demanding, continuous service
- Serviceability: Low profile, accessible designs reduce service time
- Performance: Consistent -40°F / -100°F pressure dew point across load and seasons
- Support: Comprehensive warranties and expert assistance from selection to service
Regenerative Desiccant Dryer FAQs
Desiccant dryers are required when very low dew points are needed, when temperatures fall below freezing, or when moisture sensitive processes demand ultra dry air.
