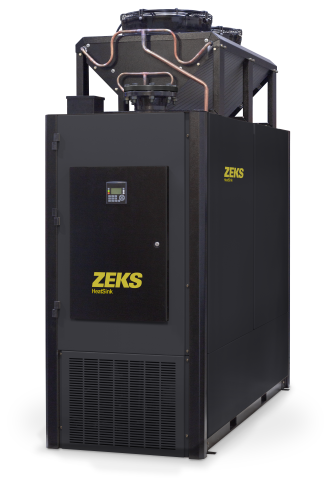

HSH Series HeatSink dryers include the newest design innovations and operating efficiencies from ZEKS. Energy savings result from True-Cycling™ operation which cycles the dryer refrigeration system in response to compressed air demand, while an advanced control system optimizes dryer performance.
In response to compressed air system demand, the dryer refrigeration system automatically cycles on and off to cool a thermal storage media. This media is circulated through a multi-layer heat exchanger, thereby cooling the compressed air and delivering dry air to the compressed air system. Condensed moisture is efficiently removed from the air stream through a multi-drain system.
3 Models, 2,000-3,000 SCFM
Thermal Mass (cycling) refrigeration system
ZEKS Models | Capacity | # of | Overall Dimensions** | Ship | In/Out Air | Operating | Refrigerant | Max | Voltage | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
W | D | H | AC | WC | ||||||||
2000HSH | 2000 | 1 | 33.9 | 90.4 | 95.8 | 3398 | 6" FLG | 9.60 | 6.70 | R454B | 200 PSIG | 460/3/60 |
2400HSH | 2400 | 1 | 33.9 | 90.4 | 95.8 | 3419 | 6" FLG | 12.30 | 7.60 | R454B | 200 PSIG | 460/3/60 |
3000HSH | 3000 | 1 | 33.9 | 90.4 | 95.8 | 3560 | 6" FLG | 15.30 | 10.10 | R454B | 200 PSIG | 460/3/60 |
4000HSHM | 4000 | 2 | 80.8 | 98.6 | 97.8 | 6937 | 8" FLG | 19.30 | 13.60 | R454B | 200 PSIG | 460/3/60 |
4800HSHM | 4800 | 2 | 80.8 | 98.6 | 97.8 | 6979 | 8" FLG | 24.70 | 15.40 | R454B | 200 PSIG | 460/3/60 |
6000HSHM | 6000 | 2 | 80.8 | 98.6 | 97.8 | 7572 | 8" FLG | 30.70 | 20.30 | R454B | 200 PSIG | 460/3/60 |
7200HSHM | 7200 | 3 | 114.9 | 100.0 | 103.9 | 10124 | 10" FLG | 36.90 | 23.00 | R454B | 200 PSIG | 460/3/60 |
9000HSHM | 9000 | 3 | 114.9 | 100.0 | 103.9 | 12194 | 10" FLG | 46.00 | 30.40 | R454B | 200 PSIG | 460/3/60 |
12000HSHM | 12000 | 4 | 149.2 | 100.2 | 105.5 | 16682 | 14" FLG | 61.30 | 40.40 | R454B | 200 PSIG | 460/3/60 |
15000HSHM | 15000 | 5 | 179.4 | 100.2 | 105.5 | 19624 | 14" FLG | 76.60 | 50.50 | R454B | 200 PSIG | 460/3/60 |
18000HSHM | 18000 | 6 | 217.3 | 100.2 | 106.5 | 23081 | 14" FLG | 91.80 | 60.60 | R454B | 200 PSIG | 460/3/60 |
21000HSHM | 21000 | 7 | 251.3 | 100.2 | 106.5 | 27365 | 14" FLG | 107.10 | 70.60 | R454B | 200 PSIG | 460/3/60 |
24000HSHM | 24000 | 8 | 285.4 | 100.2 | 106.5 | 31661 | 14" FLG | 122.40 | 80.70 | R454B | 200 PSIG | 460/3/60 |
*Performance based on ISO 7183, Table 2, Option A2 (100 PSIG Inlet Air Pressure; 100 F Inlet Air Temperature; 100 F Ambient Air Temperature; 100% Relative Humidity)
**Overall dimensions & shipping weights are for air cooled models. Consult engineering datasheets for water cooled data.
***Average kilowatts per hour of dryer operation at full rated capacity. AC = Air Cooled; WC = Water Cooled. NEMA 1 electrical, standard
